Name: SMD3535 P5 P6 Outdoor LED Display 6mm Pixel Video Wall
Brand: SHENZHEN KAILITE OPTOELECTRONIC TECHNOLOGY CO., LTD
SKU: P6 आउटडोर एलईडी डिस्प्ले
Price: 400.00 USD
Availability: InStock

होम उत्पाद आउटडोर विज्ञापन प्रदर्शित एलईडी

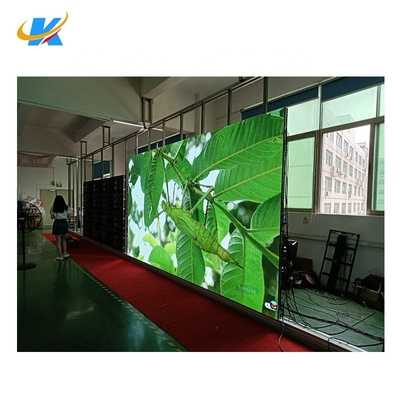

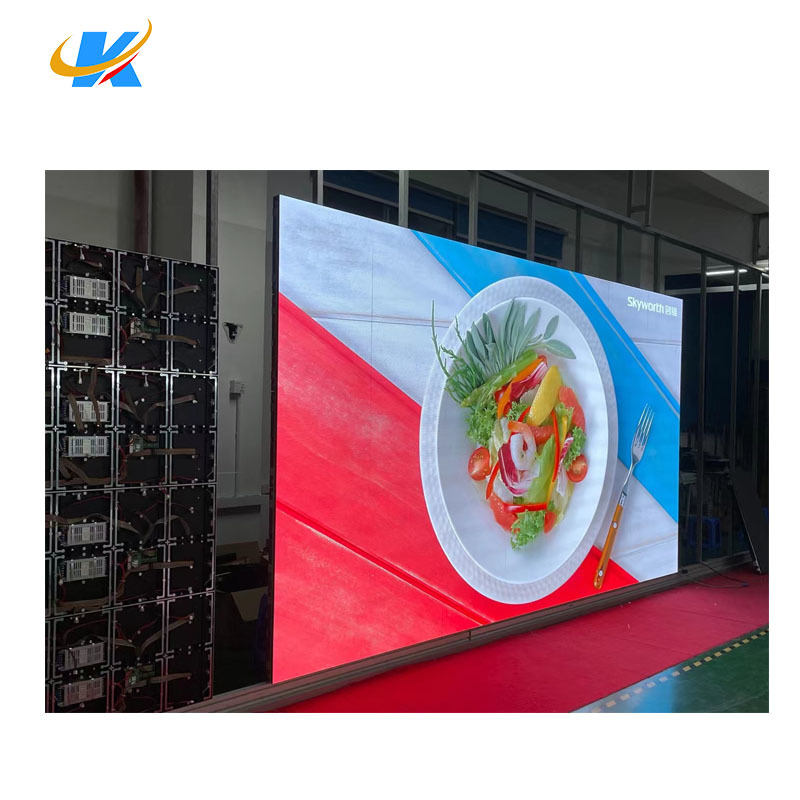

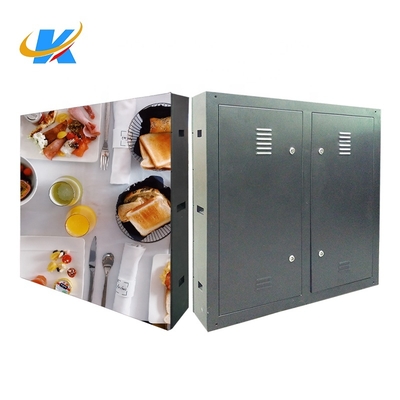

SMD3535 P5 P6 Outdoor LED Display 6mm Pixel Video Wall

उत्पाद विवरण:

उत्पत्ति के प्लेस:	ग्वांगडोंग, चीन
ब्रांड नाम:	kailite p5 P6 outdoor led display
मॉडल संख्या:	P6 आउटडोर एलईडी डिस्प्ले

भुगतान & नौवहन नियमों:

न्यूनतम आदेश मात्रा:	3

संपर्क करें

विस्तृत उत्पाद विवरण

पिक्सेल पिच:	6 मिमी	मॉड्यूल आकार:	192 मिमी*192 मिमी
एलईडी लैंप:	Smd3535	ड्राइविंग मोड:	लगातार ड्राइविंग 1/8 स्कैन
मॉड्यूल शक्ति:	35W	अधिकतम बिजली खपत:	900W
भौतिक घनत्व:	27777dots/वर्ग मीटर	पिक्सेल विन्यास:	1R1G1B
मॉड्यूल संकल्प:	32*32	अनुशंसित दूरी की अनुशंसित:	6-70 मीटर
देखने का दृष्टिकोण:	H: 120°; V:120°	औसत बिजली की खपत:	460 में
कैबिनेट आकार:	960*960 मिमी	कैबिनेट का वजन:	35 किग्रा/पैनल
परिचालन तापमान:	-30℃~+45℃
प्रमुखता देना:	SMD3535 outdoor LED display , P5 P6 LED video wall , 6mm pixel outdoor display

Shenzhen Factory RGB Fixed Installation for SMD3535 P5 P6 Outdoor LED Display

Product Specifications

Attribute	Value
Application	Outdoor
Use	Advertising, retail stores, shopping malls, exhibitions, wayfinding, airports, subways, restaurants, hotels, education
Pixels	6MM
Color	Full color
Module size	192mm*192mm
LED lamp	SMD3535
Driving mode	Constant Driving 1/8 Scan
Module power	35w
Max power consumption	900w
Specification	Video Wall

Product Overview

LED technology has revolutionized visual displays worldwide. As a premier application of this technology, our LED screens deliver exceptional visual experiences across diverse environments, transforming spaces with vibrant colors and dynamic content.

SHENZHEN KAILITE OPTOELECTRONIC CO.,LTD specializes in manufacturing high-quality LED displays. We offer customized solutions with competitive pricing and guaranteed quality, ready to meet your specific requirements.

Key Features

Customized solutions tailored to your specific needs
Direct factory pricing with quality assurance
Energy-efficient and environmentally friendly design
Simple installation and easy maintenance
Enhanced heat dissipation with specially designed vent fans

Technical Specifications Comparison

Parameter	P5 Model	P6 Model
Pixel Pitch	5mm	6mm
Use Environment	Outdoor	Outdoor
Module Size	160*160mm	192*192mm
Pixel Density	40,000 dots/m²	27,777 dots/m²
LED Chip	SMD3535	SMD3535
Module Resolution	32*32	32*32
Module Power	30w	35w
Viewing Distance	5-45m	6-70m
Viewing Angle	H:120° V:120°	H:120° V:120°
Max Power Consumption	850w	900w
Ingress Protection	Front:IP67; Back:IP65	Front:IP67; Back:IP65
Lifetime	>100,000 Hours	>100,000 Hours
